High-Speed Modified Atmosphere Packaging Sealing Machine – RDW570P Series

Short Description:

RDW570 packaging machine is suitable for large batch packaging. Itis composed of automatic mold, main rack, film feeding mechanism, auto matic conveying device and servo control system.

This model is widely used in packaging fresh food as meat, poultry, fish and fruit and vegetable,cooked meat,and bakery food etc.The food undertaken modified atmosphere packaging, become more and more popular among food process factory and the distributor because of keeping the original flavor, color, nutrition, and prolonging the shelf life. The modified atmosphere package food develops rapidly in the European, Asian, Australia and American market etc.

Send email to us

Product Detail

Product Tags

Specification

Type RDW570P
Dimensions (mm)	31909801950	*The largest film (width diameter mm)**	540*260
Maximum size of packaging box (mm)	≤43545080	Power supply (V / Hz)	220/50，380V，230V/50Hz
One cycle time（s)	6-8	Power (KW)	5-5.5KW
Packing speed (box / hour)	2800-3300（6/8 trays)	Air source (MPa)	0.6 ~ 0.8
Transmission method	Servo motor drive

Why choose us？

● Packing speed 2500-2800 boxes/hour (six in one, air flushing), improve production efficiency;

● Integrated front box loading mechanism and rear merging mechanism.

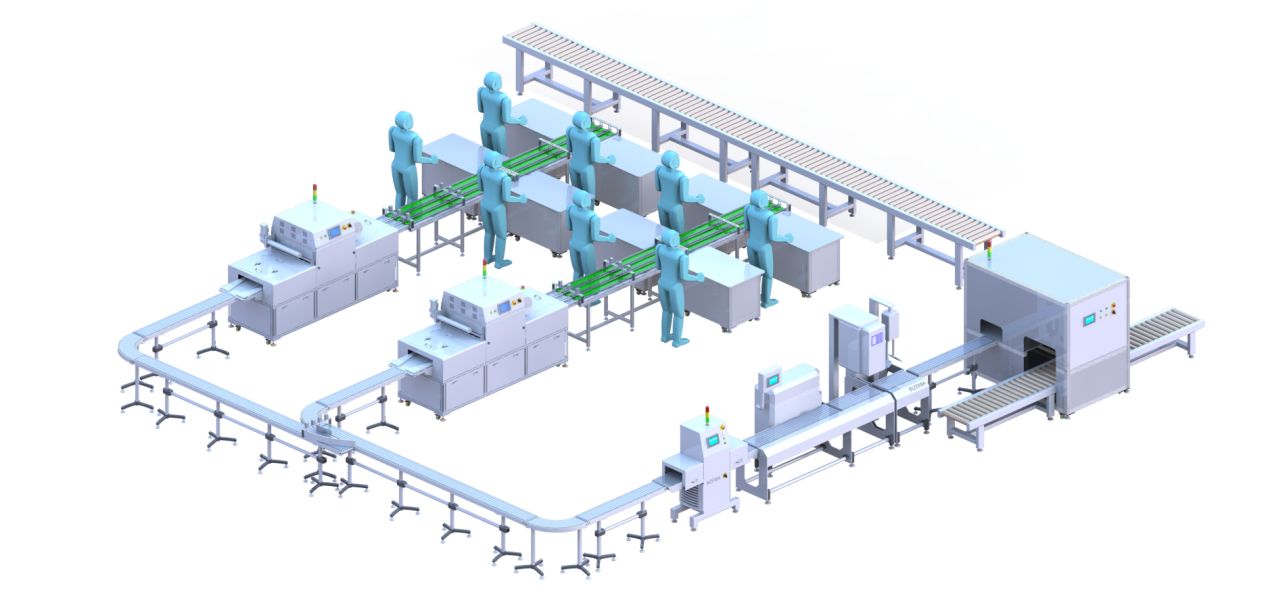

● Seamless connection with upstream and downstream conveying equipment;

● Servo push box mechanism, continuous and stable production;

● On-line cutting system makes the packaging box look beautiful and increases the added value of the product (optional function).

● Integration Merging Mechanism: RODBOL uses an integrated incorporation mechanism. When packing multiple boxes, the material is uniformly discharged, and there is no need to purchase a separate box closing machine, which reduces costs for users.

● Utilize integrated control technology to: The system uses integrated control technology to eliminate jamming and stacking issues. No human supervision is required.
